Laser cutting pattern for a rotating nut box

(0)

$ 30

(In stock)

Explanation:

SpecsAmount / Info
SoftwareCorelDRAW version 15 or higher
Box dimensions21 × 21 × 17 cm (length × width × height)
Material usageAbout 2 units of this design fit on a 120 × 90 cm sheet
File formatsCDR - DXF - PDF - SVG
Material thickness3mm MDF
Compatible machinesNon-metal laser cutters, CNC machines, marquetry cutting machines
Usable surfacesCommon materials like MDF, plexiglass, aluminum, copper (3mm thick)

Please get a bit more material than the size mentioned.

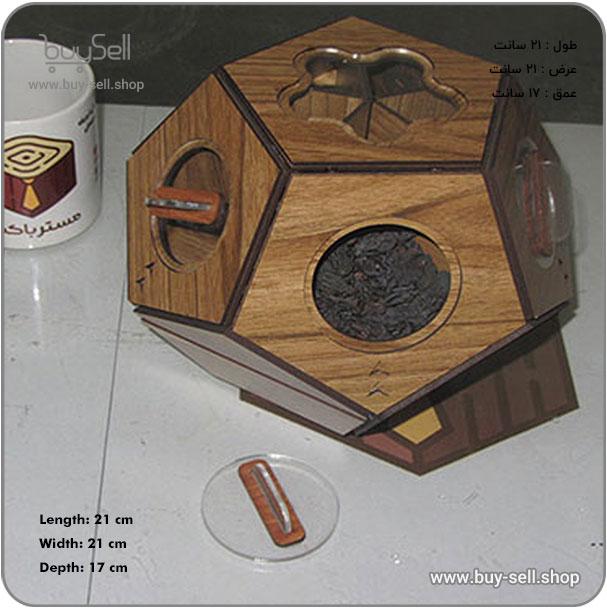

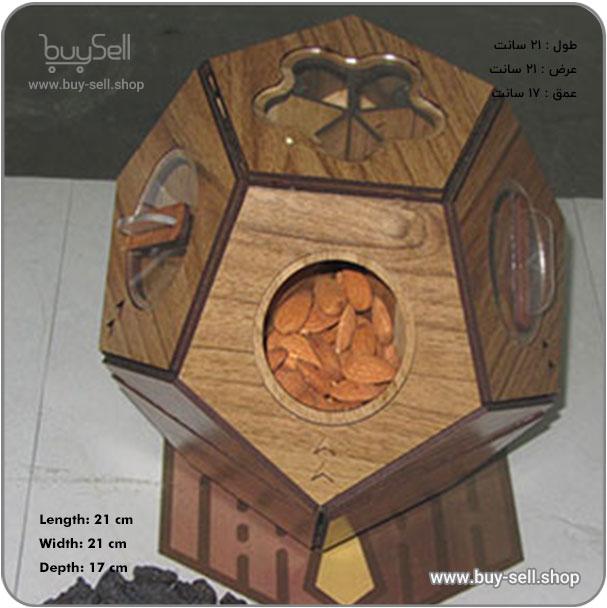

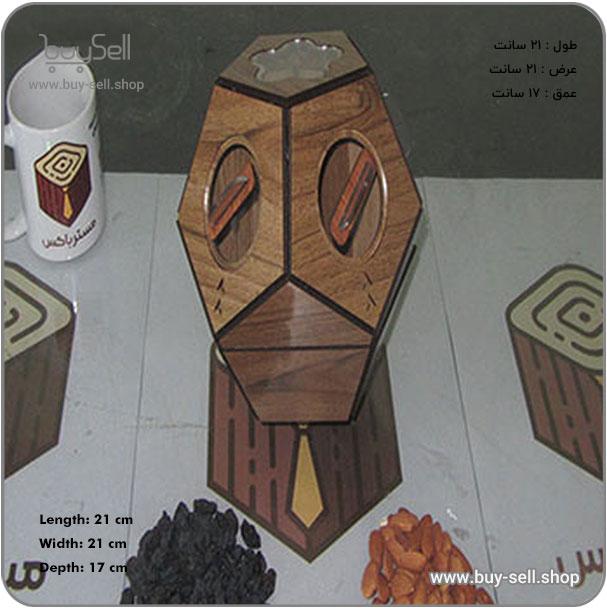

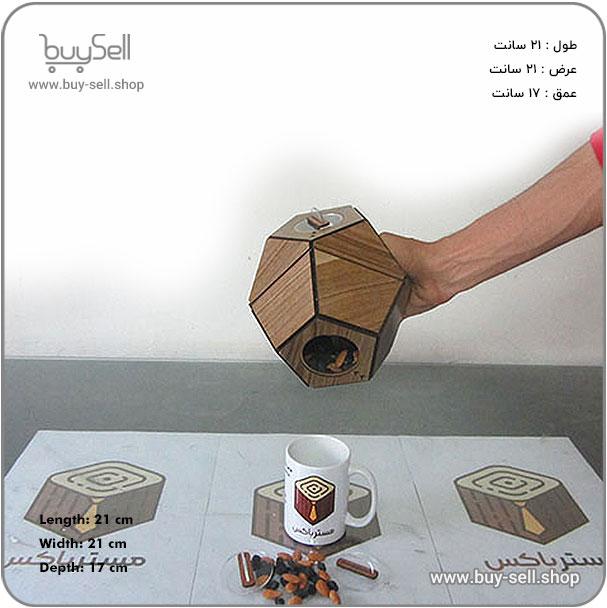

The rotating nut box is designed to be practical. It has five separate partitions for five types of nuts. The lower half rotates, and with each step, a different type of nut is released into the chamber. The nuts get mixed, and the mixed nuts can be collected from the bottom lid.



Laser cutting guide:

  • Black lines are for full cuts
  • Blue lines are for scoring
  • Green lines are for engraving



Corel pattern file:

The pattern is designed with CorelDRAW and AutoCAD, and it's fully editable.
For those who aren’t familiar with CorelDRAW or AutoCAD, there’s also a DXF file in the folder. You can just hand it over to the laser operator, and they’ll be able to cut it easily without needing to arrange the pieces themselves.
